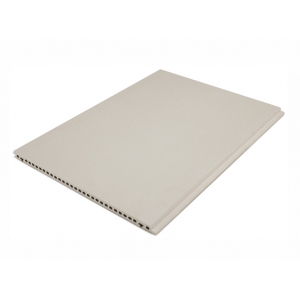

| *Model No.: | F501801 |
|---|---|
| *Place Of Origin: | Fujian, China |
| *Material: | Terracotta Clay |
| *Size: | 500*600*18mm |
| *Color: | White |
| *Packaging Details: | Wooden Crate |
| *Payment Terms: | L/C, T/T, Western Union |
| *Port: | Xiamen |
| *Delivery Time: | 25 days after receiving deposit |
| *Certification: | CE, ISO9001:2008 |

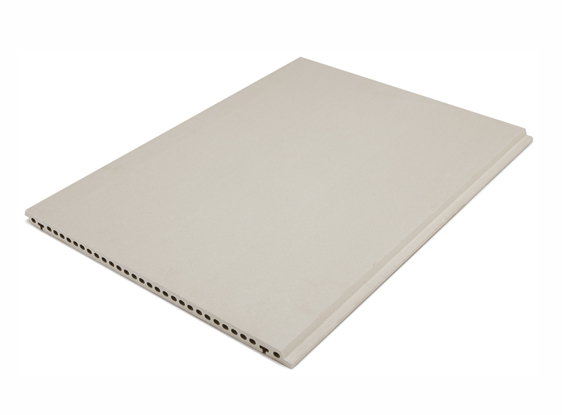

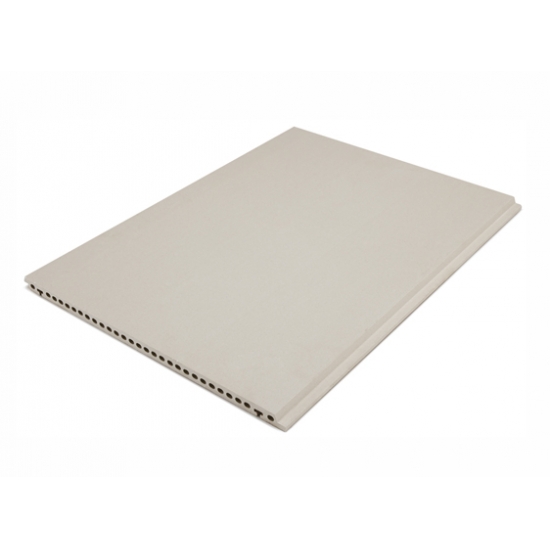

LOPO Facade Terracotta Panel can be applied in both exterior wall cladding and interior decoration together with constructional materials such as glass, aluminum alloy and terracotta louver to endow a building with distinctive design taste.
CE Approved LOPO Terracotta Panel for Wall Facade Specification:
Model No.: |
F501801 |
Brand Name: |
LOPO |
Material: |
Natural Clay |
Supply Ability: |
2500sqm/day |
Size(W*L*T): |
500*600*18mm |
MOQ: |
1x20’GP |
Color: |
White |
Packaging: |
Wooden Crate |
Weight: |
31kgs/sqm |
Loading: |
619.20sqm/20’GP |
Certification: |
CE, ISO9001:2008 |
Lead Time: |
20 days after receiving deposit |
Customized Design: |
Available |
Payment Term: |
L/C, T/T, Western Union |
Terracotta Facade Panel Regular:
Color: White/Yellow/Grey/red/Brown Surface Treatment: Flat/Grooved/Sanded/Glazed/Strip-line/Wood Grain/Corrugated Length: 250-1500mm Width: 150-600mm Thickness: 18mm or 30mm Width: 100-200mm Thickness: 10-15mm Length: 250-1500mm Width: 150-600mm Thickness: 10-15mm Regular Product
Dry Hanging Terracotta Panel
Small Size Terracotta Panel
Light Weight Terracotta Panel
Note:
Customized is welcome! Just send us your design or sample.
LOPO Wall Terracotta Panel Technical Data Sheet:
Terracotta Panel Technical Data Sheet |
||||
NO. |
Contents |
(300*600*18mm) Terracotta Panel |
China N. S. GB/T4100-2006 |
EN14411 standard |
1 |
Water Absorption |
5.4% |
(II) 6-10% |
(II) 6-10% |
2 |
Net Weight |
31kg/m2 |
No value |
No value |
3 |
Breaking Strength |
3475N |
≥ 900N |
≥ 750N |
4 |
Frost Resistance |
No crack under -60 centigrade |
Tested value of the report |
Tested value of the report |
5 |
Modulus of Rupture |
Avg. 13.1Mpa, min 11.8Mpa |
Avg. ≥ 9Mpa, single value≥ 8Mpa |
Avg. ≥ 9Mpa, single value≥ 8Mpa |
6 |
Earthquake Resistance |
Over 8 degree |
No value |
No |
7 |
Test Under Simulated Wind Load |
No breakage under 10Kpa |
No value |
No |
8 |
Sound Insulation |
Noise reduction by over 8dB |
7-10dB |
No |
9 |
Wind Pressure |
9kPa |
Tested value of the report |
Tested value of the report |
10 |
Heat Conductivity |
0.32 w/m.k |
No value |
No |
11 |
Fire Resistance |
level A1 |
No value |
No |
12 |
Resistance to Acid and Alkali |
Level UA |
Tested value of the report |
No |
13 |
Radioactivity |
Class-A decorative material |
No value |
No |
14 |
Right Angle |
0.1%- -0.2% |
Within ±1% |
No |
15 |
Size Error |
300L: 0.1%- -0.4% 600L: 0.2%- -0.5% |
Within±2% , max is within ±2mm, |
No |
16 |
Thickness Error |
Within ±4.5% |
Within ±10% |
No |
17 |
Diagonal Line |
-0.5 ~ +0.2 Max 1.0mm |
Within ±2% |
No |
CE Approved LOPO Terracotta Panel Feature and Benefits:
1. Natural terracotta clay materials, eco-friendly
2. Rich color and surface design available
3. Hollow structure and light weight design
4. No-static and no-radiation
5. Never fade, strong and durable
6. Convenient fixing installation, safe and reliable
7. Wind and earthquake resistance
8. Anti-fire, anti-freeze, heat preservation and sound insulation
9. Self-cleaning, easy maintenance
LOPO China Production Ability:
1. Domestic longest roller kiln(260-meter) with 428 firing units;
2. 80,000 square meters open stockyard with the daily reserve of natural clay raw materials amounts to 300,000 tons;
3. The new workshops and production lines under construction;
4. The semi-production indoor repository with storage capacity of 150,000 tons;
5. The automatic production line with the processing capacity of shaping, cutting and polishing;
6. A batch storage system which can reserve 12,000 tons of prepared clay material;
7. Imported molding machines of vacuum extrusion from Italy.

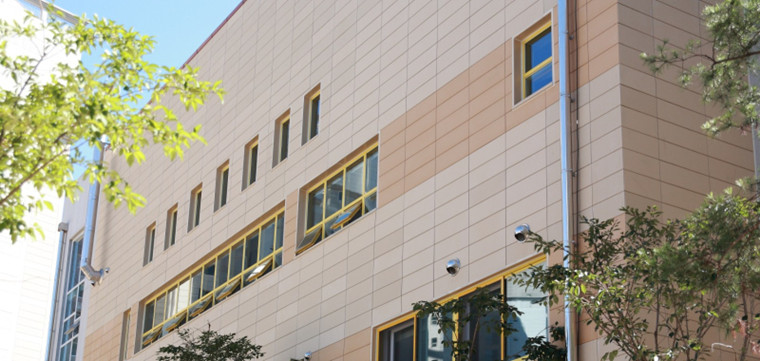

CE LOPO Terracotta Panel Project View:
South Korea Public Kindergarten
