| *Model No.: | Aluminium Clips |
|---|---|
| *Place Of Origin: | Fujian, China |
| *Material: | Aluminium Alloy |
| *Packaging Details: | Carton with wooden pallet |
| *Payment Terms: | L/C, T/T, Western Union, Paypal |
| *Port: | Xiamen Port |
| *Delivery Time: | In 25 days |
| *Certification: | CE, ISO9001 |

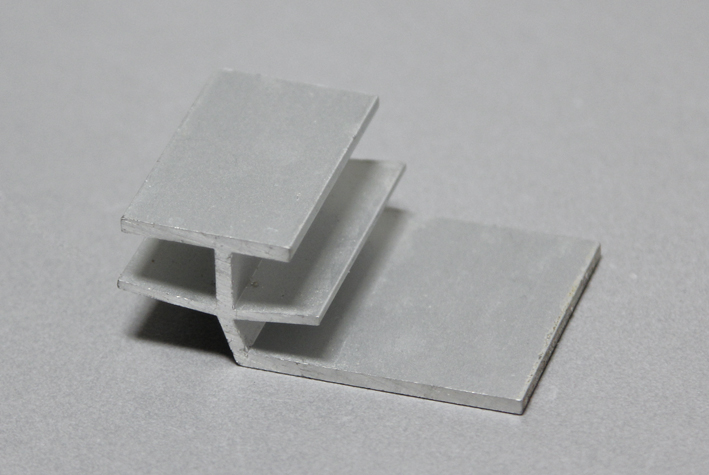

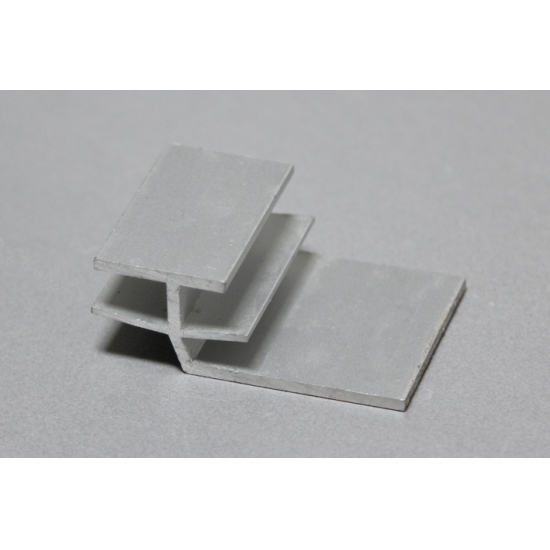

30mm Terracotta Panel Installation Clips
LOPO terracotta panel system is use dry hanging system installation to make sure every panel can be installed on the wall for long lasting and safety, which is based on the rainscreen principle, is custom designed and engineered.
Specification:
1. Material: Aluminium alloy
2. Usage: Support wall panel
3. Customized is welcome
4. High quality, long lasting
Full Set Terracotta Products Accessory:
Installation Steps for Terracotta Panel
1. Measurement and line laying
2. Installation of Columns
Secure columns on the main structure with brackets and stainless stell bolts, adjust the verticality of the supporting columns.
3. Installation of brackets or supporting rails
Secure them on the columns with stainless steel bolts or screws, adjust the verticality and horizontality of the columns.
4. Installation of tiles
1) Apply the adhesive tapes on supporting rails or columns as the joint pieces
2) Position tiles and clamps, adjust the verticality and horizontality of the terracotta panels by clamps
3) Mount panels from bottom up to finish the installation
5. Apply sealant
There is no need to apply sealant for open system, while for closed system is necessary to do so in the vertical and horizontal joints of terracotta panels.
6. Clean the installed terracotta panels with water
