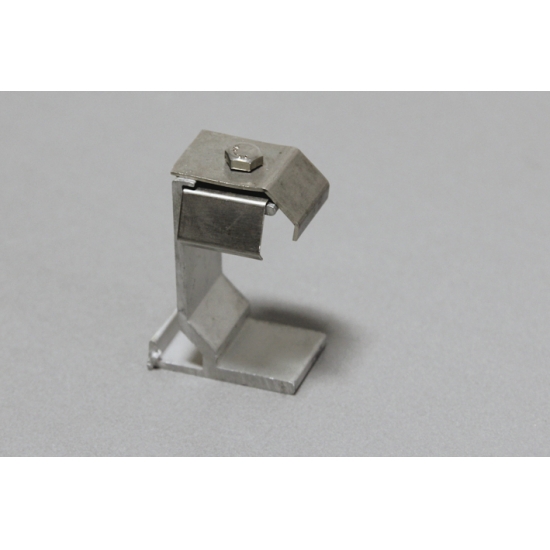

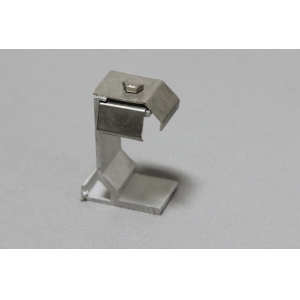

Aluminum Alloy Terracotta Baguette Fixing Components
*Model No.: Terracotta Baguette
*Place Of Origin: Fujian, China
*Material: Aluminium Alloy
*Packaging Details: Carton with wooden pallet
*Payment Terms: L/C, T/T, Western Union, Paypal
*Port: Xiamen Port
*Delivery Time: In 25 days
*Certification: CE, ISO9001
Contact Now
Product Details

Aluminum Alloy Terracotta Baguette Fixing Components

Baguette fixing parts is designed for terracotta wall baguette square size 50x50mm, T5050 Series, T50100 Series or similar size. Each baguette needs 2 fixing parts.

Aluminum alloy terracotta fixing components can easily pass data, drilling, punching, folding and other processing into the desired specifications. The process of energy consumption is significantly lower than steel.

Aluminum Alloy Terracotta Baguette Fixing Components


1.Material: Aluminium alloy

2.usage: Support wall panel

3.customized is welcome

4. High quality, long lasting


Full Set Terracotta Products Accessory:

Baguette Fixing Components

Installation Steps for Terracotta Panel Baguette

1. Measurement and line laying
Using a level to mark the horizontal and vertical lines for mounting supporting poles.

2. Installation of Columns
Secure columns on the main structure with brackets and stainless steel bolts, adjust the verticality of the supporting columns.

3. Installation of brackets or supporting rails

Secure them on the columns with stainless steel bolts or screws, adjust the verticality and horizontality of the columns.

4. Installation of tiles

1) Apply the adhesive tapes on supporting rails or columns as the joint pieces

2) Position tiles and clamps, adjust the verticality and horizontality of the terracotta panels by clamps

3) Mount panels from bottom up to finish the installation

5. Apply sealant
There is no need to apply sealant for open system, while for closed system is necessary to do so in the vertical and horizontal joints of terracotta panels.

6. Clean the installed terracotta panels with water

Aluminum Alloy Components
