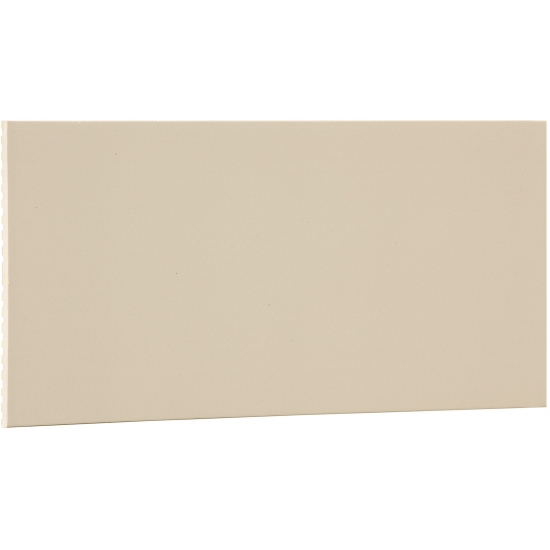

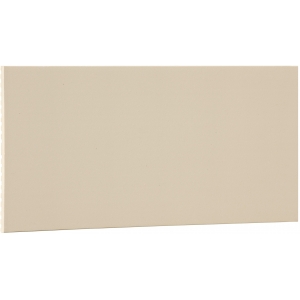

LOPO Terracotta Curtain Wall Panel
*Model No.: L301001
*Place Of Origin: Fujian, China
*Material: Natural Clay
*Size: 300*600*15mm
*Color: White
*Packaging Details: Wooden Crate
*Payment Terms: L/C, T/T, Western Union
*Port: Xiamen
*Delivery Time: 25 days after receiving deposit
*Certification: CE, ISO9001:2006
Contact Now
Product Details

LOPO TERRACOTTA CURTAIN WALL PANEL

Terracotta curtain wall panel is a kind of pure clay natural materials, does not pollute the air, and through fine processing, extrusion equipment, drying, high temperature kiln forming processes have considerable strength, hardness and surface finish panel.

LOPO Terracotta Curtain Wall Panel

DESCRIPTION

Terracotta curtain wall panel  is made from high quality clay and kilned via vacuum high-pressure extrusion and high temperature. It has the characters of low consumption, no radiation, light pollution and do not fade. Terracotta curtain wall system adopts an open dry-hanging method of installation which helps to protect the structure from inclement weather and air pollution. It can also prevent the accumulation of dirt, thus maintaining the appearance of the curtain wall.

REQUEST A QUOTE OR SAMPLE


KEY BENEFITS

- Natural terracotta clay materials, eco-friendly

- wide range of sizes and colors available

- Hollow structure and light weight design

- No-static and no-radiation

- Never fade, strong, excellent long-term durability

- Convenient fixing system, safe and reliable

- Extreme UV and weather resistance

- Wind and earthquake resistance

- Anti-fire, anti-freeze, heat preservation and sound insulation

- Self-cleaning, low maintenance



TERRACOTTA CURTAIN WALL COLOR RANGE

Unglazed Terracotta Curtain Wall


SIZES AND AVAILABILITY

 Regular Product

 Color: White/Yellow/Grey/red/Brown

 Surface Treatment: Flat/Grooved/Sanded/Glazed/Strip-line/Wood Grain/Corrugated

 Dry Hanging Terracotta Panel

 Length: 250-1500mm

 Width: 150-600mm

 Thickness: 18mm or 30mm

 Small Size Terracotta Panel

 Width: 100-200mm

 Thickness: 10-15mm

 Light Weight Terracotta Panel

 Length: 250-1500mm

 Width: 150-600mm

 Thickness: 10-15mm

 Note:  Customized is welcome! Just send us your design or sample.


APPLICATION:

Municipal Building / Theaters / Education Building /Commercial Building/ Hospital/ Hotel / Airport / Subway/ Residential Area / Renovation of Antique Building etc.



LOPO TERRACOTTA CURTAIN WALL TEST REPORT:

CHARACTERISTIC

LOPO Specification

Reference Standard

Dimensions and Surface Quality

Length

±1%/max.(L:±1mm; W:±1.5mm)

ISO10545-2

Thickness

±10%/max.±1.0mm

Straightness of Sides

±0.5%/max.(L:±2mm; W:±0.5mm)

Rectangularity

±0.5%/max.±2mm

Surface Flatness(curvature and warpage)

±1%/max.±2.5mm

Centre

±1%/max.±2.5mm

Side

±1%/max.±2.5mm

Warpage

/

Surface Quality

Crack

0

ISO10545-2

Scratch

No obvious flaw is visually inspected from a distance of

1.5metres while the tile is hanging vertically.

Color Difference

No obvious flaw is visually inspected from a distance of

1.5metres while the tile is hanging vertically.

Stains

No obvious flaw is visually inspected from a distance of

 1.5metres while the tile is hanging vertically.

Number permitted≤3

Striation

No obvious flaw is visually inspected from a distance of

1.5metres while the tile is laid flat

Chipped Edge(Length/Width/Thickness)

Front: max.(w≤1mm, T≤1mm, L≤3mm);

Back: max.(w≤2mm, T≤1mm, L≤5mm);

Chipped Corner(Length/Thickness)

Front: max.(T≤2mm, L≤2mm);

Back: max.(T≤2mm, L≤4mm);

Physical Properties

Water Absorption

Average: E≤6%; Individual max. Value: E≤6%

ISO10545-3/AS 4459.3

Density

2.3--2.4g/cm³

ISO10545-3/AS 4459.3

Dry Weight

31kg/m2(T18mm)



Compressive Strength

Average 81.4MPa and 11.8psi(Vertical Coring)

ASTM C126-3

Impact Resistance (Coefficient of restitution)

0.47

AS 4459.5

Modules of Rupture

Average 14.5MPa

AS 4459.4

Breaking Strength

/

/

Thickness≤18mm

Average≥2700N; Individual max.value≥2100N

ISO10545-4

18mm

Average≥5400N; Individual max.value≥4500N

ISO10545-4

Frost Resistance

No visible damages after 25 changes of freezing

and thawing

ISO10545-12

Resistance to Thermal Shock

Free from defects after 10 cycles

ISO10545-9/AS 4459.9

Thermal Conductivity

Thickness≤18mm

≤0.35w/(m . k)

ISO10545-8

18mm

≤0.47w/(m . k)

Moisture Expansion

0.007%

ISO10545-10

Wind Load

9Kpa

ASTM E330

Linear Thermal Expansion

5.46x10ˉ⁶Cˉ¹

ISO10545-8

Chemical Properties

Resistance to Low Concentrations of Acids

 and Alkalis

Not Lower than the requirements of ULB

ISO10545-13
