Home >> Terracotta Wall Tile >>Cost Effective Abrasion Resistant Full Body Tiles

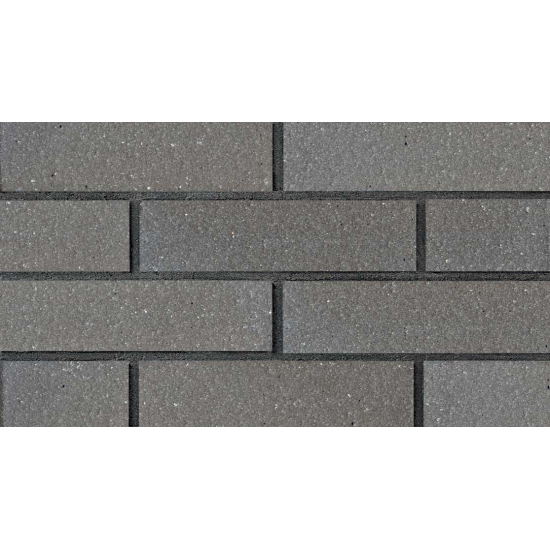

Cost Effective Abrasion Resistant Full Body Tiles
*Model No.: WF994
*Place Of Origin: China
*Material: Clay
*Size: 60*240*11mm
*Color: Grey
*Packaging Details: Carton with Pallet
*Payment Terms: TT; L/C; PayPal; Western Union
*Port: Xiamen Port
*Delivery Time: in 35 days
*Certification: CE, ISO
Contact Now
Product Details

The advantages of cost effective abrasion resistant full body tiles are highest mechanical loads possible and chemical resistance.



ITEM NO.

WF994

SURFACE

PLAIN SURFACE

WEIGHT

19.5kg/CTN

PACKAGE

60PCS/CTN

SAND SIZE

SMALL

WATER ABSORPTION RATE

4.2%



TILE QUANTITIES

BRICKS PER m² BASED ON
SINGLE-SKIN CONSTRUCTION
WITH 12mm JOINTS

SQUARE METERS
PER 1000 BRICKS

55 PCS

18.144





Testing Items

National Standard

Length and Width

Difference of average size and

working size of a single tile

+/-1.5
maximal+/- 2 mm

Difference of average size and

working size of ten tiles

+/-1.5 mm

Thickness

Difference of average size and

working size of a single tile

+/-1.0 mm

Appearance Quality

The defects can't be seen in one meter

Water Absorption  (E,%)

3.0average E<=6.0
single value<=6.5

Breaking Modulus   (R, Mpa)

average value R>=13
single value>=11

Fracture Strength  (S, N)

S>=800

Thermal shock resistance

After 10 times testing, No crackle or crack

Frosting resistance

After 100 times recycling test, No crack spalling




Terrracotta tiles raw material is natural clay, feldspar, sand etc. After natural drying, the raw material is pulverized

into powder. The materials will be put into extrusion machine after adding an appropriate water. The wet tiles need to

put natural environment for drying about 3 days, then 1.5 days in drying kiln. And 1.5 days in firing kiln. After that, the

tiles will be delivered to split line, in there one tile will be split into two pieces. Final procedure is packing.



Clay brick tile was firstly produced in German which was made from certain percentage of many kinds of clay and a small

amount of mountain flour by pre-mixing, powering mixing, vacuum extrusion, drying and kiln firing. The color of tiles are

quite similar to natural mineral. That is why some foreigners named it Terracotta Tiles. In Taiwan China, local people

named it ejection brick according to the extrusion work. In China mainland, it was named clay split brick basic on the split

work after firing. Actually if from the point of material, it should be called clay tile (Japanese name)

From the original of clay tile we can know that this kind of tile is made from a certain percentage of different sintering

degree clay, different colors and a small amount of mountain flour. However, the material of the hot-selling glazed ceramic

tiles and full body ceramic tiles in the market is on conversely, using more mountain flour and less clay.
