| *Model No.: | F3018003 |
|---|---|
| *Place Of Origin: | Fujian, China |
| *Material: | Natural Clay |
| *Size: | 300*600*18mm |
| *Color: | White |
| *Packaging Details: | 31kgs/sqm |
| *Payment Terms: | L/C, T/T, Western Union |
| *Port: | Xiamen |
| *Delivery Time: | 20 days after receiving deposit |
| *Certification: | CE, ISO9001:2008 |
Just like other curtain wall materials, Terra Cotta Building Facades are not naturally occurring substances. But they are processed and made into the final product in companies. Terracotta Panels are made from 100% eco-friendly terracotta materials. Some colors associated with the panels include: dark red, natural red, coral red, light red, dark grey, orange, medium grey, and nright yellow, soil nrown, chocolate, coffee, charcoal grey etc.They can also be made into various shades. These panels are long lasting and effective it well taken care of.
Economical Exterior Terra Cotta Building Facades Specification:
Model No.: |
F3018003 |
Brand Name: |
LOPO |
Material: |
Natural Clay |
Supply Ability: |
2500sqm/day |
Size(W*L*T): |
300*600*18mm |
MOQ: |
1x20’GP |
Color: |
White |
Packaging: |
Wooden Crate |
Weight: |
31kgs/sqm |
Loading: |
619.20sqm/20’GP |
Certification: |
CE, ISO9001:2008 |
Lead Time: |
20 days after receiving deposit |
Customized Design: |
Available |
Payment Term: |
L/C, T/T, Western Union |
Terra Cotta Building Facades Regular Products:
| Regular Product | Color: White/Yellow/Grey/red/Brown Surface Treatment: Flat/Grooved/Sanded/Glazed/Strip-line/Wood Grain/Corrugated |
| Dry Hanging Terracotta Panel | Length: 250-1500mm Width: 150-600mm Thickness: 18mm or 30mm |
| Small Size Terracotta Panel | Width: 100-200mm Thickness: 10-15mm |
| Light Weight Terracotta Panel | Length: 250-1500mm Width: 150-600mm Thickness: 10-15mm |
| Note: | Customized is welcome! Just send us your design or sample. |
Wall Facade Panels Technical Data Sheet:
Terracotta Panel Technical Data Sheet |
||||
NO. |
Contents |
(300*600*18mm) Terracotta Panel |
China N. S. GB/T4100-2006 |
EN14411 standard |
1 |
Water Absorption |
5.4% |
(II) 6-10% |
(II) 6-10% |
2 |
Net Weight |
31kg/m2 |
No value |
No value |
3 |
Breaking Strength |
3475N |
≥ 900N |
≥ 750N |
4 |
Frost Resistance |
No crack under -60 centigrade |
Tested value of the report |
Tested value of the report |
5 |
Modulus of Rupture |
Avg. 13.1Mpa, min 11.8Mpa |
Avg. ≥ 9Mpa, single value≥ 8Mpa |
Avg. ≥ 9Mpa, single value≥ 8Mpa |
6 |
Earthquake Resistance |
Over 8 degree |
No value |
No |
7 |
Test Under Simulated Wind Load |
No breakage under 10Kpa |
No value |
No |
8 |
Sound Insulation |
Noise reduction by over 8dB |
7-10dB |
No |
9 |
Wind Pressure |
9kPa |
Tested value of the report |
Tested value of the report |
10 |
Heat Conductivity |
0.32 w/m.k |
No value |
No |
11 |
Fire Resistance |
level A1 |
No value |
No |
12 |
Resistance to Acid and Alkali |
Level UA |
Tested value of the report |
No |
13 |
Radioactivity |
Class-A decorative material |
No value |
No |
14 |
Right Angle |
0.1%- -0.2% |
Within ±1% |
No |
15 |
Size Error |
300L: 0.1%- -0.4% 600L: 0.2%- -0.5% |
Within±2% , max is within ±2mm, |
No |
16 |
Thickness Error |
Within ±4.5% |
Within ±10% |
No |
17 |
Diagonal Line |
-0.5 ~ +0.2 Max 1.0mm |
Within ±2% |
No |
Exterior Terra Cotta Building Facades Feature and Benefits:
1. Natural terracotta clay materials, eco-friendly
2. Rich color and surface design available
3. Hollow structure and light weight design
4. No-static and no-radiation
5. Never fade, strong and durable
6. Convenient fixing installation, safe and reliable
7. Wind and earthquake resistance
8. Anti-fire, anti-freeze, heat preservation and sound insulation
9. Self-cleaning, easy maintenance
LOPO China Production Ability:
1. Domestic longest roller kiln(260-meter) with 428 firing units;
2. 80,000 square meters open stockyard with the daily reserve of natural clay raw materials amounts to 300,000 tons;
3. The new workshops and production lines under construction;
4. The semi-production indoor repository with storage capacity of 150,000 tons;
5. The automatic production line with the processing capacity of shaping, cutting and polishing;
6. A batch storage system which can reserve 12,000 tons of prepared clay material;
7. Imported molding machines of vacuum extrusion from Italy.

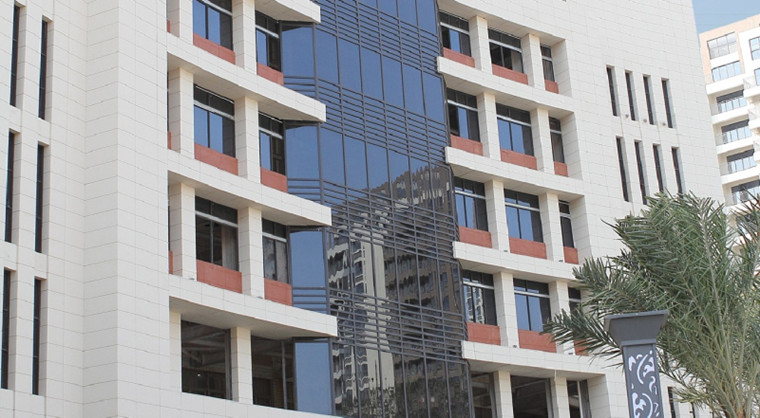

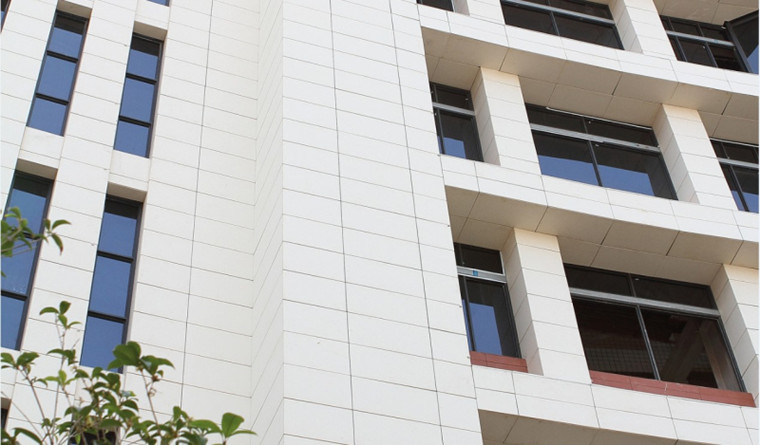

Terra Cotta Building Facades Project:
Jinjiang No.1 Middle School
Jinjiang No.1 Middle School
