| *Model No.: | Natural Surface |
|---|---|
| *Material: | Natural Clay |
| *Packaging Details: | Wooden Crate |
| *Payment Terms: | L/C, T/T, Western Union, Paypal |
| *Port: | Xiamen |
| *Delivery Time: | 30 days after receive deposit |
| *Certification: | CE, ISO9001:2008 |

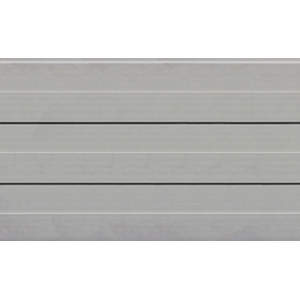

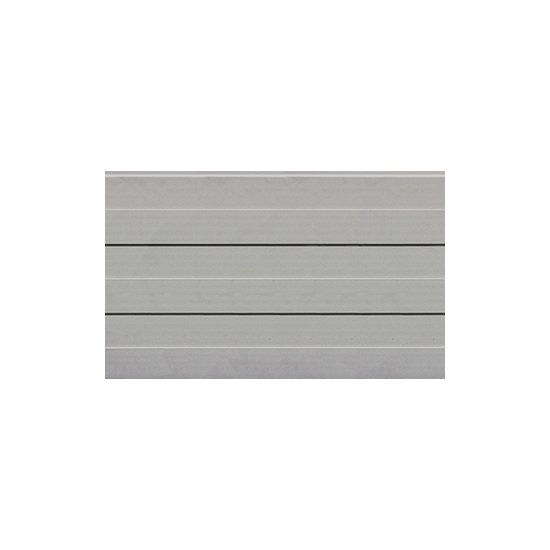

Grooved Texture Exterior Terracotta Wall Cladding System
TEXTURE
LOPO Terracotta panel product series are of 6 kinds of standard textures:
Natural
Sand
Strip-line
Grooved
Corrugated
LOPO can realize different fine surface effects. Each surface can be glazed in different colors or textures according to customer's requirements. With advanced raw material grinding equipment.
| Texture | LOPO Regular Texture | Special Texture |
| Natural |  |
 |
| Sand |  |
|
| Strip Line |  |
 |
| Grooved |  |
 |
| Corrugated |  |
SHAPES
LOPO China manufactures terracotta wall cladding panel and terracotta baguette and louver in a wide range of special terracotta shapes and size, which gives architects and designers the opportunity to create signature buildings on every LOPO terracotta project. Terracotta facade panels producing by LOPO china bring a completely new dimension to designing the building exterior. LOPO can meet the highest standards for both architecture and design by blending the latest technology for ventilated facades with urban tradition and materials.
TERRACOTTA PANEL REGULAR PRODUCT
| Regular Product | Picture | Color: White/Yellow/Grey/red/Brown Surface Treatment: Flat/Grooved/Sanded/Glazed/Strip-line/Wood Grain/Corrugated |
| Dry Hanging Terracotta Panel |  |
Length: 250-1500mm Width: 150-600mm Thickness: 18mm or 30mm |
| Small Size Terracotta Panel |  |
Width: 100-200mm Thickness: 10-15mm |
| Light Weight Terracotta Panel |  |
Length: 250-1500mm Width: 150-600mm Thickness: 10-15mm |
| Special Cladding Panels |  |
Length: 250-1500mm Width: 150-600mm Thickness: 15-45mm |
| Note: | Customized design is welcome! Just send us your design or sample. |
TERRACOTTA LOUVER
| Regular Product | Color | Surface | Size |
 |
White/Red/Yellow/Grey/Brown | Natural/Glazed | Length:＜1800 Width: 50mm Thickness: 50mm |
 |
White/Red/Yellow/Grey/Brown | Natural/Glazed | Length:＜1800mm Width: 100mm Thickness: 40/50mm |
 |
White/Red/Yellow/Grey/Brown | Natural/Glazed | Length:＜1800mm Width: 100mm Thickness: 40/50mm |
 |
White/Red/Yellow/Grey/Brown | Natural/Glazed | Length: ＜1800mm Width: 180mm Thickness: 40/50mm |
 |
White/Red/Yellow/Grey/Brown | Natural/Glazed | Length: ＜1800mm Width: 200mm Thickness: 45mm |
| Customized Design | Sample or design | Sample or design | Length: ＜1800mm Width:＜200mm Thickness: ＜50mm |
Reference:
More information about Exterior Wall Cladding System, please refer: http://www.terracottapanel.com/terracotta-panel_c1
