Home >> Terracotta Wall Tile >>Natural Red Abrazine Terracotta Tile

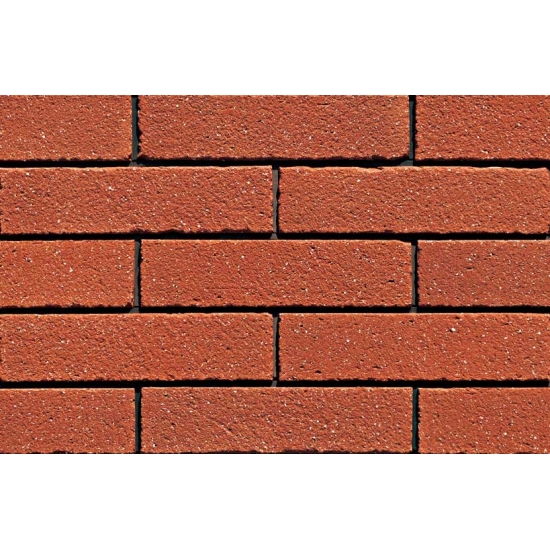

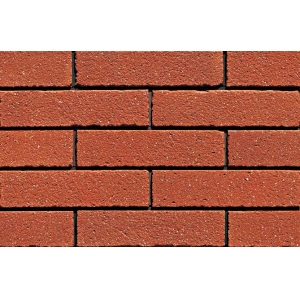

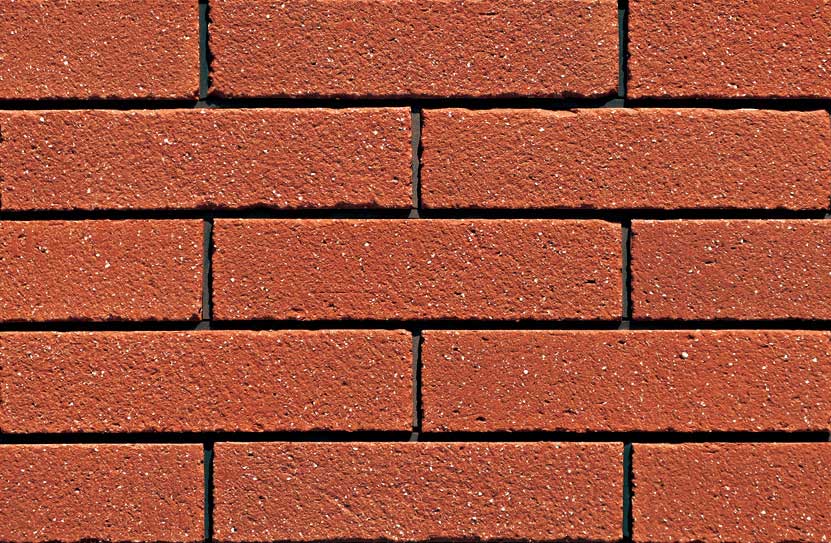

Natural Red Abrazine Terracotta Tile
*Model No.: WH636
*Place Of Origin: China
*Material: Clay
*Size: 230*52*11mm
*Color: RED
*Packaging Details: carton with pallet
*Payment Terms: TT; L/C; PayPal; Western Union
*Port: Xiamen Port
*Delivery Time: in 35 days
*Certification: CE, ISO
Contact Now
Product Details

The color of natural red abrazine terracotta tile is quite similar to natural mineral. That is why some foreigners named it Terracotta Tiles.



SPECIFICATIONS:

ITEM NO.

WH636

SURFACE

S SURFACE

WEIGHT

19.5kg/CTN

PACKAGE

FLAT TILE: 70PCS/CTN

CORNER TILE: 17PCS/CTN

WINDOW TILE: 20PCS/CTN

SIZE AVAILABLE

FLAT TILE: 230*52*11MM/ 240*60*11MM/ 200*52*11MM

CORNER TILE: (168+50)*52MM/ (168+50)*60MM

WINDOW TILE: (52+52)*230MM/ (60+60)*240MM



PRODUCTION PROCEDURE:

Natural red terracotta tiles' raw material is natural clay, feldspar, sand etc. After natural drying, the raw material is pulverized into

powder. The materials will be put into extrusion machine after adding an appropriate water. The wet tiles need to put

natural environment for drying about 3 days, then 1.5 days in drying kiln. And 1.5 days in firing kiln. After that, the tiles

will be delivered to split line, in there one tile will be split into two pieces. Final procedure is packing.




TECHNICAL DATA:

Testing Items

National Standard

Length

Difference of average size and working size of a single tile

+/-1.5
maximal: +/- 2mm

 Width

Difference of average size and working size of ten tiles

+/-1.5

Thickness

Difference of average size and working size of a single tile

+/-1.0

Appearance Quality

The defects can't be seen in one meter

Water Absorption  (E,%)

3.0average E<=6.0
single value<=6.5

Breaking Mould   (R, Mpa)

average value R>=13
single value>=11

Fracture Strength  (S, N)

S>=800

Thermal shock resistance

After 10 times testing, No crackle or crack


ECO FRIENDLY FACTS

1. All terracotta tile raw material is coming from natural environment. Recycling enable to make full use of all materials and make sure zero wastage..

2. Production scheduled in off-peak periods so as to reduce the national electricity pressure..

3. Energy to bake our clay products are natural gas, which will not leak out harmful element to environment. It is cleaner and safer if compared with coal and oil.

4. The movement of terracotta tiles are in rails on the floor. Forklifts working energy can be saved.
