Home >> Terracotta Panel >> Solid Facade Panel >>Solid LOPO China Terractotta Facade Panel

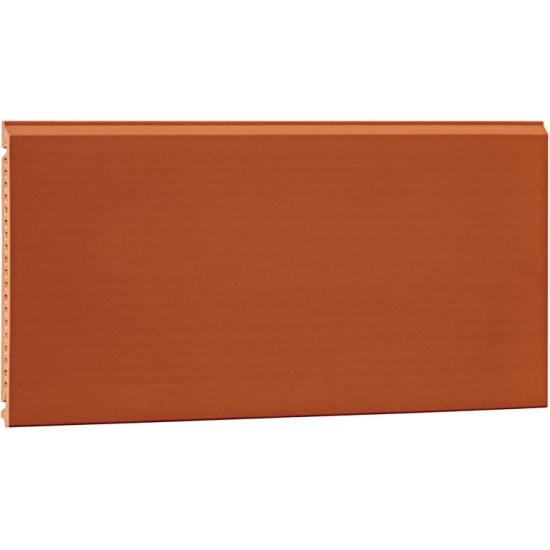

Solid LOPO China Terractotta Facade Panel
*Model No.: L301463
*Place Of Origin: Fujian, China
*Material: Natural Clay
*Size: 300*600*14mm
*Color: Red
*Packaging Details: Wooden Crate
*Payment Terms: L/C, T/T, Western Union
*Port: Xiamen
*Delivery Time: 25 days after receiving deposit
*Certification: CE, ISO9001:2006
Contact Now
Product Details

LOPO CHINA is the professional terracotta product manufacturer in China from 2002. Terracotta Facade Panel is produced from environmentally responsible clay-based contruction materials with imported machine. Our terracotta panel  available in small and medium format elements.

www.terracottapanel.com

SOLID LOPO CHINA TERRACOTTA FACADE PANEL

Solid LOPO China Terractotta Facade Panel

DESCRIPTION

LOPO China has imported molding machines of vacuum extrusion and domestic longest roller kiln (260-meter) with 428 firing units for exterior wall facade tile, 80,000 square meters open stockyard with the daily reserve of natural clay raw materials amounts to 300,000 tons, the semi-product indoor repository with storage capacity of 150,000 tons, the automatic production line with the processing capacity of shaping, cutting and polishing, a batch storage system which can reserve 12,000 tons of prepared clay material.

REQUEST A QUOTE OR SAMPLE

www.terracottapanel.com

KEY BENEFITS

- Natural terracotta clay materials, eco-friendly

- wide range of sizes and colors available

- Hollow structure and light weight design

- No-static and no-radiation

- Never fade, strong, excellent long-term durability

- Convenient fixing system, safe and reliable

- Extreme UV and weather resistance

- Wind and earthquake resistance

- Anti-fire, anti-freeze, heat preservation and sound insulation

- Self-cleaning, low maintenance

 www.terracottapanel.com

TERRACOTTA FACADE TILE COLOR RANGE

LOPO China Terractotta Panel

www.terracottapanel.com

SIZES AND AVAILABILITY

 Regular Product

 Color: White/Yellow/Grey/red/Brown

 Surface Treatment: Flat/Grooved/Sanded/Glazed/Strip-line/Wood Grain/Corrugated

 Dry Hanging Terracotta Panel

 Length: 250-1500mm

 Width: 150-600mm

 Thickness: 18mm or 30mm

 Small Size Terracotta Panel

 Width: 100-200mm

 Thickness: 10-15mm

 Light Weight Terracotta Panel

 Length: 250-1500mm

 Width: 150-600mm

 Thickness: 10-15mm

 Note:  Customized is welcome! Just send us your design or sample.

www.terracottapanel.com

APPLICATION:

Municipal Building / Theaters / Education Building /Commercial Building/ Hospital/ Hotel / Airport / Subway/ Residential Area / Renovation of Antique Building etc.

 www.terracottapanel.com

LOPO CHINA PANEL TEST REPORT:

CHARACTERISTIC

LOPO Specification

Reference Standard

Dimensions and Surface Quality

Length

±1%/max.(L:±1mm; W:±1.5mm)

ISO10545-2

Thickness

±10%/max.±1.0mm

Straightness of Sides

±0.5%/max.(L:±2mm; W:±0.5mm)

Rectangularity

±0.5%/max.±2mm

Surface Flatness(curvature and warpage)

±1%/max.±2.5mm

Centre

±1%/max.±2.5mm

Side

±1%/max.±2.5mm

Warpage

/

Surface Quality

Crack

0

ISO10545-2

Scratch

No obvious flaw is visually inspected from a distance of

1.5metres while the tile is hanging vertically.

Color Difference

No obvious flaw is visually inspected from a distance of

1.5metres while the tile is hanging vertically.

Stains

No obvious flaw is visually inspected from a distance of

 1.5metres while the tile is hanging vertically.

Number permitted≤3

Striation

No obvious flaw is visually inspected from a distance of

1.5metres while the tile is laid flat

Chipped Edge(Length/Width/Thickness)

Front: max.(w≤1mm, T≤1mm, L≤3mm);

Back: max.(w≤2mm, T≤1mm, L≤5mm);

Chipped Corner(Length/Thickness)

Front: max.(T≤2mm, L≤2mm);

Back: max.(T≤2mm, L≤4mm);

Physical Properties

Water Absorption

Average: E≤6%; Individual max. Value: E≤6%

ISO10545-3/AS 4459.3

Density

2.3--2.4g/cm³

ISO10545-3/AS 4459.3

Dry Weight

31kg/m2(T18mm)



Compressive Strength

Average 81.4MPa and 11.8psi(Vertical Coring)

ASTM C126-3

Impact Resistance (Coefficient of restitution)

0.47

AS 4459.5

Modules of Rupture

Average 14.5MPa

AS 4459.4

Breaking Strength

/

/

Thickness≤18mm

Average≥2700N; Individual max.value≥2100N

ISO10545-4

18mm

Average≥5400N; Individual max.value≥4500N

ISO10545-4

Frost Resistance

No visible damages after 25 changes of freezing

and thawing

ISO10545-12

Resistance to Thermal Shock

Free from defects after 10 cycles

ISO10545-9/AS 4459.9

Thermal Conductivity

Thickness≤18mm

≤0.35w/(m . k)

ISO10545-8

18mm

≤0.47w/(m . k)

Moisture Expansion

0.007%

ISO10545-10

Wind Load

9Kpa

ASTM E330

Linear Thermal Expansion

5.46x10ˉ⁶Cˉ¹

ISO10545-8

Chemical Properties

Resistance to Low Concentrations of Acids

 and Alkalis

Not Lower than the requirements of ULB

ISO10545-13
