| *Model No.: | WFS2363 |
|---|---|
| *Place Of Origin: | China |
| *Material: | Clay |
| *Size: | 60*240*11mm |
| *Color: | MIXED |
| *Packaging Details: | carton with pallet |
| *Payment Terms: | TT; L/C; PayPal; Western Union |
| *Port: | Xiamen Port |
| *Delivery Time: | in 35 days |
| *Certification: | CE, ISO |
Since the ancient, human beings have know the stable preformance of brick wall tile, such as for exceptional character
and strength with high colour retention.
TECHNICAL DATA:
Testing Items |
National Standard |
|
Length and Width |
Difference of average size and working size of a single tile |
+/-1.5 |
Difference of average size and working size of ten tiles |
+/-1.5 mm |
|
Thickness |
Difference of average size and working size of a single tile |
+/-1.0 mm |
Appearance Quality |
The defects can't be seen in one meter |
|
Water Absorption (E,%) |
3.0＜average E＜＝6.0 |
|
Breaking Modulus (R, Mpa) |
average value R>=13 |
|
Fracture Strength (S, N) |
S>=800 |
|
Thermal shock resistance |
After 10 times testing, No crackle or crack |
|
Frosting resistance |
After 100 times recycling test, No crack spalling |
|
ADVANTAGES: Brick Tile
1. High pressure extrusion work make superior breakage strength.
2. Well perforated in window and door reveals.
3. Labor savings, easy installation in walls and corners
4. Dovetail back grooves ensure strong fixing on the wall
5. 110 meter of automatic control baking kiln is the guarantee of color
6. Three production lines make sure all orders produced in a short lead time and ensure quality.
7. 1500 m2 output per production line.
|
SPECIFICATIONS |
|
|
ITEM NO. |
WFS2363 |
|
SURFACE |
PLAIN SURFACE |
|
WEIGHT |
19.5kg/CTN |
|
PACKAGE |
60PCS/CTN |
|
WATER ABSORPTION RATE |
4.2% |

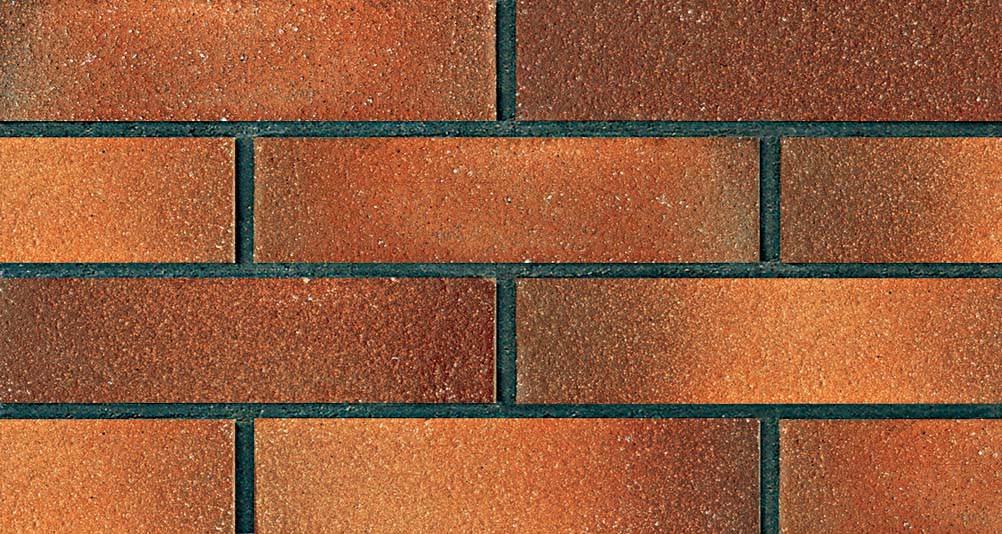

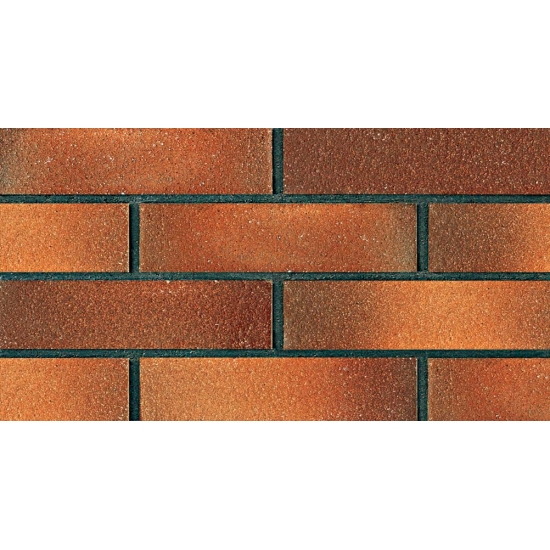

PRODUCT PICTURE: BRICK TILE
