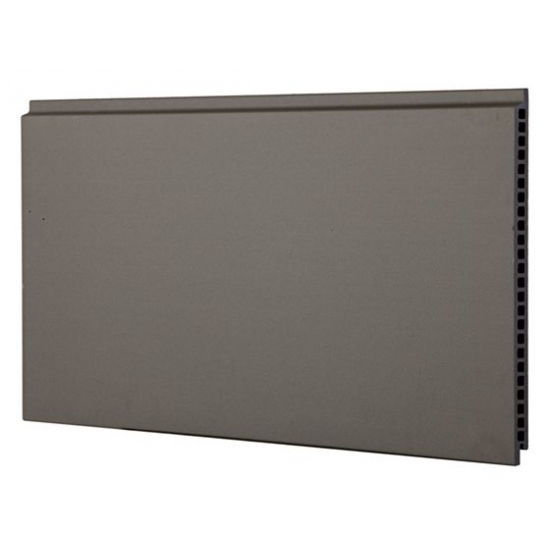

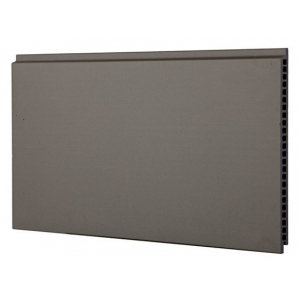

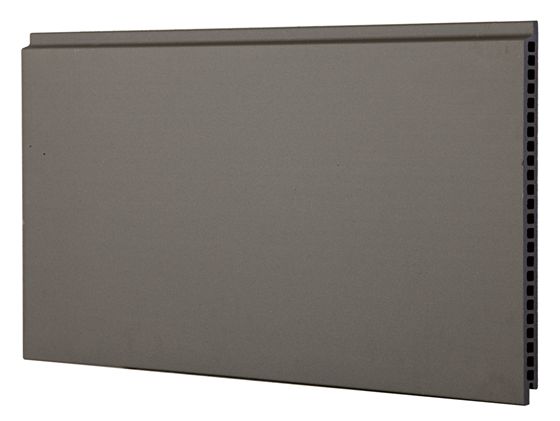

More*Model No.: | F4022886 |
---|---|
*Place Of Origin: | Fujian, China |
*Material: | Natural Clay |
*Size: | 400*1200*22mm |
*Color: | Grey |
*Packaging Details: | Wooden Crate |
*Payment Terms: | L/C, T/T, Western Union |
*Port: | Xiamen |
*Delivery Time: | 25 days after receiving deposit |
*Certification: | CE, ISO9001:2008 |
EXTERIOR PLAIN CERAMIC CURTAIN WALL SYSTEM
DESCRIPTION
LOPO Ceramic Curtain Wall System blend urban tradition and materials with the latest technology in ventilated facades. LOPO offers a unique variety of sizes, shapes, colors and finishes. Terracotta Panel Curtain Wall Systems has well design and reasonable structure which could maximum meet with the local design needs. Whether it is the flat surface, corner, or other parts of the wall, these products could maintain the features of coherent, natural and beautiful.
We offer a complete standard offering, including terracotta panel, baguette, solid and facade cladding systems and full customization for new construction and applications.
KEY BENEFITS
- Natural terracotta clay materials, eco-friendly
- wide range of sizes and colors available
- Hollow structure and light weight design
- No-static and no-radiation
- Never fade, strong, excellent long-term durability
- Convenient fixing system, safe and reliable
- Extreme UV and weather resistance
- Wind and earthquake resistance
- Anti-fire, anti-freeze, heat preservation and sound insulation- Self-cleaning, low maintenance
EXTERIOR CERAMIC CURTAIN WALL COLOR RANGE
SIZES AND AVAILABILITY
Regular Product | Color: White/Yellow/Grey/red/Brown Surface Treatment: Flat/Grooved/Sanded/Glazed/Strip-line/Wood Grain/Corrugated |
Dry Hanging Terracotta Panel | Length: 250-1500mm Width: 150-600mm Thickness: 18mm or 30mm |
Small Size Terracotta Panel | Width: 100-200mm Thickness: 10-15mm |
Light Weight Terracotta Panel | Length: 250-1500mm Width: 150-600mm Thickness: 10-15mm |
Note: | Customized is welcome! Just send us your design or sample. |
APPLICATION:
Municipal Building / Theaters / Education Building /Commercial Building/ Hospital/ Hotel / Airport / Subway/ Residential Area / Renovation of Antique Building etc.
TEST REPORT:
CHARACTERISTIC |
LOPO Specification |
Reference Standard |
Dimensions and Surface Quality |
||
Length |
±1%/max.(L:±1mm; W:±1.5mm) |
ISO10545-2 |
Thickness |
±10%/max.±1.0mm |
|
Straightness of Sides |
±0.5%/max.(L:±2mm; W:±0.5mm) |
|
Rectangularity |
±0.5%/max.±2mm |
|
Surface Flatness(curvature and warpage) |
±1%/max.±2.5mm |
|
Centre |
±1%/max.±2.5mm |
|
Side |
±1%/max.±2.5mm |
|
Warpage |
/ |
|
Surface Quality |
||
Crack |
0 |
ISO10545-2 |
Scratch |
No obvious flaw is visually inspected from a distance of 1.5metres while the tile is hanging vertically. |
|
Color Difference |
No obvious flaw is visually inspected from a distance of 1.5metres while the tile is hanging vertically. |
|
Stains |
No obvious flaw is visually inspected from a distance of 1.5metres while the tile is hanging vertically. Number permitted≤3 |
|
Striation |
No obvious flaw is visually inspected from a distance of 1.5metres while the tile is laid flat |
|
Chipped Edge(Length/Width/Thickness) |
Front: max.(w≤1mm, T≤1mm, L≤3mm); Back: max.(w≤2mm, T≤1mm, L≤5mm); |
|
Chipped Corner(Length/Thickness) |
Front: max.(T≤2mm, L≤2mm); Back: max.(T≤2mm, L≤4mm); |
|
Physical Properties |
||
Water Absorption |
Average: E≤6%; Individual max. Value: E≤6% |
ISO10545-3/AS 4459.3 |
Density |
2.3--2.4g/cm³ |
ISO10545-3/AS 4459.3 |
Dry Weight |
31kg/m2(T18mm) |
|
Compressive Strength |
Average 81.4MPa and 11.8psi(Vertical Coring) |
ASTM C126-3 |
Impact Resistance (Coefficient of restitution) |
0.47 |
AS 4459.5 |
Modules of Rupture |
Average 14.5MPa |
AS 4459.4 |
Breaking Strength |
/ |
/ |
Thickness≤18mm |
Average≥2700N; Individual max.value≥2100N |
ISO10545-4 |
18mm |
Average≥5400N; Individual max.value≥4500N |
ISO10545-4 |
Frost Resistance |
No visible damages after 25 changes of freezing and thawing |
ISO10545-12 |
Resistance to Thermal Shock |
Free from defects after 10 cycles |
ISO10545-9/AS 4459.9 |
Thermal Conductivity |
||
Thickness≤18mm |
≤0.35w/(m . k) |
ISO10545-8 |
18mm |
≤0.47w/(m . k) |
|
Moisture Expansion |
0.007% |
ISO10545-10 |
Wind Load |
9Kpa |
ASTM E330 |
Linear Thermal Expansion |
5.46x10ˉ⁶Cˉ¹ |
ISO10545-8 |
Chemical Properties |
||
Resistance to Low Concentrations of Acids and Alkalis |
Not Lower than the requirements of ULB |
ISO10545-13 |
