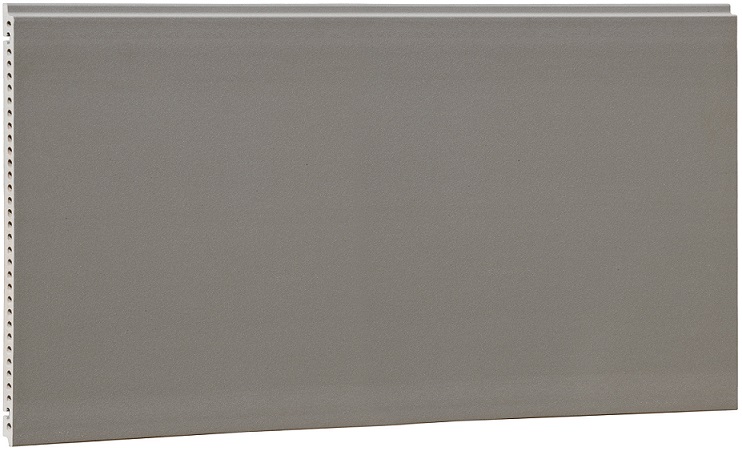

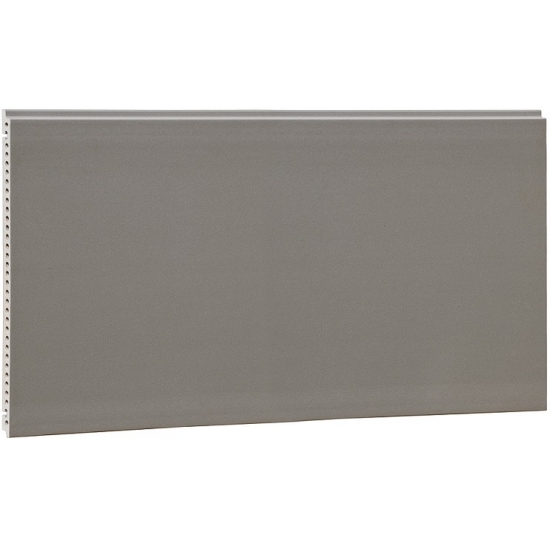

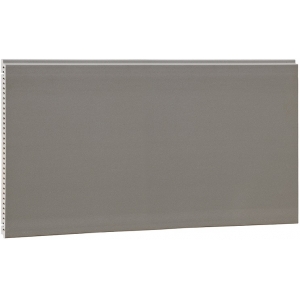

Building Terracotta Rainscreen Panels for Construction
*Model No.: F451884
*Place Of Origin: Fujian, China
*Material: Natural Clay
*Size: 450*600*18mm
*Color: White
*Packaging Details: 31kgs/sqm
*Payment Terms: L/C, T/T, Western Union
*Port: Xiamen
*Delivery Time: 20 days after receiving deposit
*Certification: CE, ISO9001:2008
Contact Now
Product Details

LOPO is one of the professional terracotta products manufacturer in Asia. At the same time, LOPO is an expert in custom Building Terracotta Rainscreen Panels with latest technology in ventilated facades.



Building Terracotta Rainscreen Panels for Construction Specification:

Building Terracotta Rainscreen Panels for Construction

Model No.:

F451884

Brand Name:

LOPO

Material:

Natural Clay

Supply Ability:

2500sqm/day

Size(W*L*T):

450*600*18mm

MOQ:

1x20GP

Color:

White

Packaging:

Wooden Crate

Weight:

31kgs/sqm

Loading:

619.20sqm/20GP

Certification:

CE, ISO9001:2008

Lead Time:

20 days after receiving deposit

Customized Design:

Available

Payment Term:

L/C, T/T, Western Union


Terracotta Rainscreen Panels Regular Products:

 Regular Product

 Color: White/Yellow/Grey/red/Brown

 Surface Treatment: Flat/Grooved/Sanded/Glazed/Strip-line/Wood Grain/Corrugated

 Dry Hanging Terracotta Panel

 Length: 250-1500mm

 Width: 150-600mm

 Thickness: 18mm or 30mm

 Small Size Terracotta Panel

 Width: 100-200mm

 Thickness: 10-15mm

 Light Weight Terracotta Panel

 Length: 250-1500mm

 Width: 150-600mm

 Thickness: 10-15mm

 Note:  Customized is welcome! Just send us your design or sample.


Rainscreen Panels Technical Data Sheet:

Terracotta Panel Technical Data Sheet

NO.

Contents

(300*600*18mm) Terracotta Panel

China N. S. GB/T4100-2006

EN14411 standard

1

Water Absorption

5.4%

(II) 6-10%

(II) 6-10%

2

Net Weight

31kg/m2

No value

No value

3

Breaking Strength

3475N

≥ 900N

≥ 750N

4

Frost Resistance

No crack under -60 centigrade

Tested value of the report

Tested value of

 the report

5

Modulus of Rupture

Avg. 13.1Mpa,

 min 11.8Mpa

Avg. ≥ 9Mpa,

single value≥ 8Mpa

Avg. ≥ 9Mpa,

 single value≥ 8Mpa

6

Earthquake Resistance

Over 8 degree

No value

No

7

Test Under Simulated

Wind Load

No breakage under 10Kpa

No value

No

8

Sound Insulation

Noise reduction by over 8dB

7-10dB

No

9

Wind Pressure

9kPa

Tested value of the report

Tested value of

 the report

10

Heat Conductivity

0.32 w/m.k

No value

No

11

Fire Resistance

level A1

No value

No

12

Resistance to Acid

and Alkali

Level UA

Tested value of the report

No

13

Radioactivity

Class-A decorative material

No value

No

14

Right Angle

0.1%- -0.2%

Within ±1%

No

15

Size Error

300L: 0.1%- -0.4%

600L: 0.2%- -0.5%

Within±2% ,

 max is within ±2mm,

No

16

Thickness Error

Within ±4.5%

Within ±10%

No

17

Diagonal Line

-0.5 ~ +0.2  Max 1.0mm

Within ±2%

No


Terracotta Rainscreen Panels Feature and Benefits:

1. Natural terracotta clay materials, eco-friendly

2. Rich color and surface design available

3. Hollow structure and light weight design

4. No-static and no-radiation

5. Never fade, strong and durable

6. Convenient fixing installation, safe and reliable

7. Wind and earthquake resistance

8. Anti-fire, anti-freeze, heat preservation and sound insulation

9. Self-cleaning, easy maintenance


LOPO China Production Ability:

1. Domestic longest roller kiln(260-meter) with 428 firing units;

2. 80,000 square meters open stockyard with the daily reserve of natural clay raw materials amounts to 300,000 tons;

3. The new workshops and production lines under construction;

4. The semi-production indoor repository with storage capacity of 150,000 tons;

5. The automatic production line with the processing capacity of shaping, cutting and polishing;

6. A batch storage system which can reserve 12,000 tons of prepared clay material;

7. Imported molding machines of vacuum extrusion from Italy.
