More*Model No.: | F301889 |
---|---|
*Place Of Origin: | Fujian, China |
*Material: | Natural Clay |
*Size: | 300*600*18mm |
*Color: | Dark Grey |
*Packaging Details: | 31kgs/sqm |
*Payment Terms: | L/C, T/T, Western Union |
*Port: | Xiamen |
*Delivery Time: | 20 days after receiving deposit |
*Certification: | CE, ISO9001:2008 |
Terracotta Panel, also know as terracotta plate, is currently the global epidemic lightweight terracotta dry hanging materials of building facade decoration, shutter decoration and exterior & interior decoration.
Terracotta Panel Wall Facade use natural clay as the main raw material, add a small amount of other ingredients like quartz, pumice, feldspar and pigments etc., then through high-pressure extrusion molding, low-temperature drying and 1200℃ high temperature firing, finally comes out the terracotta panel. Terracotta Panel Wall Facade can meet various requirements from architects by natural texture and rich colors with LOPO China's special formula and advanced firing process.

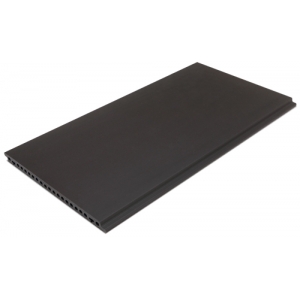

External Dark Grey Terracotta Panel Wall Facade Specification:
Model No.: |
F301801 | Brand Name: | LOPO |
Material: |
Natural Clay | Supplying Ability: | 2500sqm/day |
Size(W*L*T): |
300*600*18mm | MOQ. Quantity: | 1x20'GP |
Color: |
Dark Grey | Packaging: | Wooden crate |
Weight: |
31kgs/sqm | Loading: | 619.20sqm/20'GP |
Certification: |
CE, ISO9001:2008 | Lead Time: | 20 days after receiving deposit |
Customized Design: |
Available | Payment Term: | L/C, T/T, Western Union |
Regular Terracotta Products:
Regular Product: | Color: White/Yellow/Grey/Red/Brown Surface Treatment: Flat/Grooved/Sanded/Glazed/Linear/Wood/Corrugated |
Dry Hanging Terracotta Panel: | Length: 250mm-1500mm Width: 150mm-600mm Thickness: 18mm/30mm |
Small Size Terracotta Panel: | Width: 100mm-200mm Thickness: 10mm-15mm |
Lightweight Terracotta Panel: | Length: 250-1500mm Width: 150mm-600mm Thickness: 10mm-15mm |
Note: |
Customized design is welcome! Just send us your design or sample. |
External Terracotta Panel Wall Facade Technical Data Sheet:
Terracotta Panel Technical Data Sheet |
||||
NO. |
Contents |
(300*600*18mm) Terracotta Panel |
China N. S. GB/T4100-2006 |
EN14411 standard |
1 |
Water Absorption |
5.4% |
(II) 6-10% |
(II) 6-10% |
2 |
Net Weight |
31kg/m2 |
No value |
No value |
3 |
Breaking Strength |
3475N |
≥ 900N |
≥ 750N |
4 |
Frost Resistance |
No crack under -60 centigrade |
Tested value of the report |
Tested value of the report |
5 |
Modulus of Rupture |
Avg. 13.1Mpa, min 11.8Mpa |
Avg. ≥ 9Mpa, single value≥ 8Mpa |
Avg. ≥ 9Mpa, single value≥ 8Mpa |
6 |
Earthquake Resistance |
Over 8 degree |
No value |
No |
7 |
Test Under Simulated Wind Load |
No breakage under 10Kpa |
No value |
No |
8 |
Sound Insulation |
Noise reduction by over 8dB |
7-10dB |
No |
9 |
Wind Pressure |
9kPa |
Tested value of the report |
Tested value of the report |
10 |
Heat Conductivity |
0.32 w/m.k |
No value |
No |
11 |
Fire Resistance |
level A1 |
No value |
No |
12 |
Resistance to Acid and Alkali |
Level UA |
Tested value of the report |
No |
13 |
Radioactivity |
Class-A decorative material |
No value |
No |
14 |
Right Angle |
0.1%- -0.2% |
Within ±1% |
No |
15 |
Size Error |
300L: 0.1%- -0.4% 600L: 0.2%- -0.5% |
Within±2% , max is within ±2mm, |
No |
16 |
Thickness Error |
Within ±4.5% |
Within ±10% |
No |
17 |
Diagonal Line |
-0.5 ~ +0.2 Max 1.0mm |
Within ±2% |
No |
Terracotta Rainscreen Panels Feature and Benefits:
1. Natural terracotta clay materials, eco-friendly
2. Rich color and surface design available
3. Hollow structure and light weight design
4. No-static and no-radiation
5. Never fade, strong and durable
6. Convenient fixing installation, safe and reliable
7. Wind and earthquake resistance
8. Anti-fire, anti-freeze, heat preservation and sound insulation
9. Self-cleaning, easy maintenance
LOPO China Production Ability:
1. Domestic longest roller kiln(260-meter) with 428 firing units;
2. 80,000 square meters open stockyard with the daily reserve of natural clay raw materials amounts to 300,000 tons;
3. The new workshops and production lines under construction;
4. The semi-production indoor repository with storage capacity of 150,000 tons;
5. The automatic production line with the processing capacity of shaping, cutting and polishing;
6. A batch storage system which can reserve 12,000 tons of prepared clay material;
7. Imported molding machines of vacuum extrusion from Italy.
