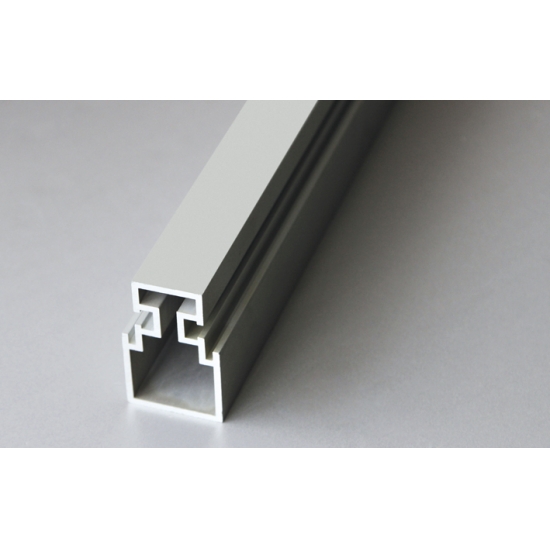

Dry Hanging System Terracotta Panel Aluminum Column
*Model No.: Terracotta Panel Cli
*Place Of Origin: Fujian, China
*Material: Aluminum Alloy
*Packaging Details: Carton with wooden pallet
*Payment Terms: L/C, T/T, Western Union, Paypal
*Port: Xiamen Port
*Delivery Time: In 25 days
*Certification: CE, ISO9001
Contact Now
Product Details

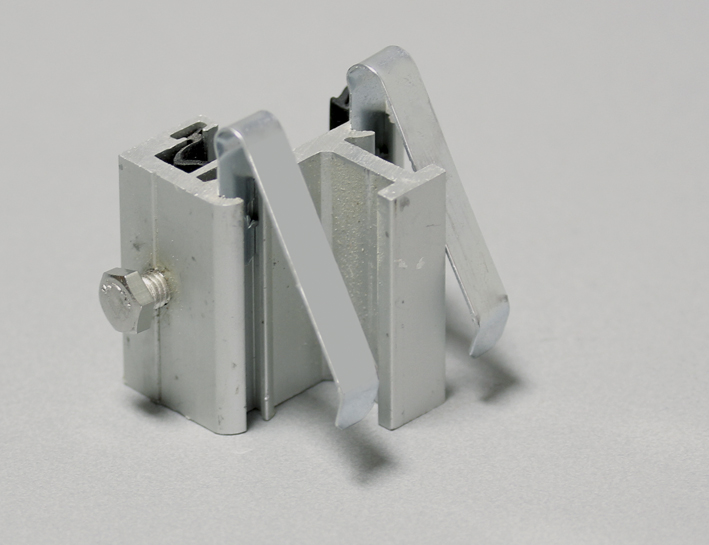

18mm Lightweight Terracotta Panel Clips

LOPO terracotta panel system is use dry hanging system installation to make sure every panel can be installed on the wall for long lasting and safety, which is based on the rainscreen principle, is custom designed and engineered. Terracotta panel aluminium accessories supplying by lopo is easy to shape, the accessories is available in different molds, easy access via an extrusion process of aluminum extrusion products of different cross-sectional shapes.

The installed terracotta facade panels can be replaced by piece and removed without following a certain order. Just break the broken terracotta panels by physical method, get them out and then re-install the new panels. Connecting parts are added between transverse keels by rivets to guarantee the stability of system.


1. Material: Aluminum alloy

2. Usage: Support 18mm terracotta panel

3. Customized is welcome

4. High quality, long lasting


Full Set Terracotta Products Accessory:

Installation Steps for Terracotta Panel

1. Measurement and line laying
Using a leval to mark the horizontal and vertical lines for mounting supporting poles.

2. Installation of Columns
Secure columns on the main structure with brackets and stainless stell bolts, adjust the verticality of the supporting columns.

3. Installation of brackets or supporting rails

Secure them on the columns with stainless steel bolts or screws, adjust the verticality and horizontality of the columns.

4. Installation of tiles

1) Apply the adhesive tapes on supporting rails or columns as the joint pieces

2) Position tiles and clamps, adjust the verticality and horizontality of the terracotta panels by clamps

3) Mount panels from bottom up to finish the installation

5. Apply sealant
There is no need to apply sealant for open system, while for closed system is necessary to do so in the vertical and horizontal joints of terracotta panels.

6. Clean the installed terracotta panels with water
