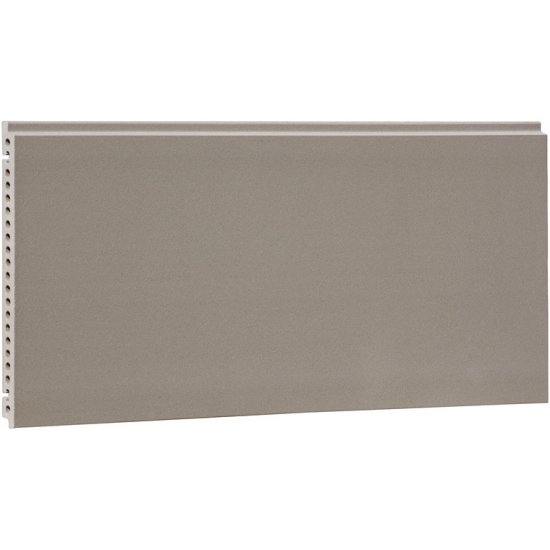

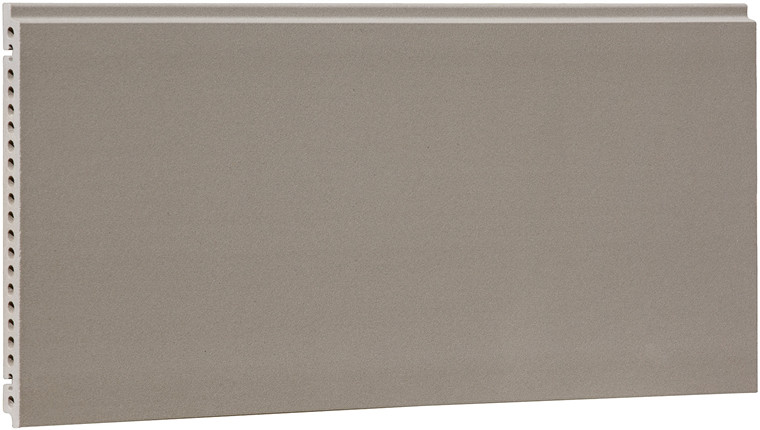

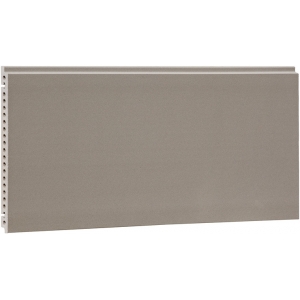

Long Lasting Architectural Terra Cotta Wall Panels
*Model No.: F3018882
*Place Of Origin: Fujian, China
*Material: Natural Clay
*Size: 300*600*18mm
*Color: Light Grey
*Packaging Details: Wooden Crate
*Payment Terms: L/C, T/T, Western Union
*Port: Xiamen
*Delivery Time: 25 days after receiving deposit
*Certification: CE, ISO9001:2008
Contact Now
Product Details

Terra Cotta Screen Panels are produced through processes of strict raw material processing, high pressure extrusion forming, and 1,200 ℃ high temperature burning, with very stable and even physic chemical properties. As curtain wall materials, terracotta panels have features of fire safety, acid and alkali resistance, scratch and wear resistance, and high compressive strength. Even placed in environments of ultra-high temperature or of low temperature and frost, the terracotta panels can keep great stability performance.


Architectural Terra Cotta Screen Panels do not need slotting on the back during construction, and can be installed directly. Meanwhile, the panels can be cut at will, and laid out flexibly, so the terracotta panels can be installed very soon after the curtain wall’s keels are fixed.



Long Lasting Architectural Terra Cotta Wall Panels:



APPLICATION:

Municipal Building / Theaters / Education Building /Commercial Building/ Hospital/ Hotel / Airport / Subway/ Residential Area / Renovation of Antique Building etc.



ADVANTAGES:

1. Never Fade
Terracotta panel made up from high quality natural pure argil, via vacuum high pressure extrusion molding, burn out from high temperature. With low consumption and no radiation, light pollution, never fade and can effectively resist ultraviolet radiation, durable, 100% of the repeatable recycling. It’s environmental protection material choice.

2. Waterproof & Insulation Sound Noise
Terracotta panel cavity design greatly reduces the materials self weight, reduce building façade structure system load, meanwhile, after high temperature firing, can effectively reduce the heat transfer coefficient, make ceramic plate with greater intensity, makes its enhanced against the bad weather, the waterproof is admirable.

3. Anti Fire &Freeze
Advanced technology and equipment, precise cutting, strict calibrated to ensure the product quality and size stability. Terracotta panel a has good security anti fire characteristics, anti acid and alkali corrosion resistant, anti scratch and abrasion. Even face supernormal low or high temperatures, it could keep stable.

4. Rain Self-cleaning
Clay materials content metal very low, do not produce electrostatic, not easy to absorb dust, dirt not easy deposition, via wind and rain could self cleaning.

5. Simple Natural
The Terracotta panel colors is rich, covers the modern architecture mainstream color design requirements. Natural texture and external clay color collect architectures rich artistic style.

6. Diversity Styles and Sizes

LOPO offers a variety styles and sizes for your chosen, its complete sizes through different product combination and cutting to meet designer’s style requirement.


LOPO Terracotta Tiles Fixing Components:


Terracotta Panel Test Report:

CHARACTERISTIC

LOPO Specification

Reference Standard

Dimensions and Surface Quality

Length

±1%/max.(L:±1mm; W:±1.5mm)

ISO10545-2

Thickness

±10%/max.±1.0mm

Straightness of Sides

±0.5%/max.(L:±2mm; W:±0.5mm)

Rectangularity

±0.5%/max.±2mm

Surface Flatness(curvature and warpage)

±1%/max.±2.5mm

Centre

±1%/max.±2.5mm

Side

±1%/max.±2.5mm

Warpage

/

Surface Quality

Crack

0

ISO10545-2

Scratch

No obvious flaw is visually inspected from a distance of

1.5metres while the tile is hanging vertically.

Color Difference

No obvious flaw is visually inspected from a distance of

1.5metres while the tile is hanging vertically.

Stains

No obvious flaw is visually inspected from a distance of

 1.5metres while the tile is hanging vertically.

Number permitted≤3

Striation

No obvious flaw is visually inspected from a distance of

1.5metres while the tile is laid flat

Chipped Edge(Length/Width/Thickness)

Front: max.(w≤1mm, T≤1mm, L≤3mm);

Back: max.(w≤2mm, T≤1mm, L≤5mm);

Chipped Corner(Length/Thickness)

Front: max.(T≤2mm, L≤2mm);

Back: max.(T≤2mm, L≤4mm);

Physical Properties

Water Absorption

Average: E≤6%; Individual max. Value: E≤6%

ISO10545-3/AS 4459.3

Density

2.3--2.4g/cm³

ISO10545-3/AS 4459.3

Dry Weight

31kg/m2(T18mm)



Compressive Strength

Average 81.4MPa and 11.8psi(Vertical Coring)

ASTM C126-3

Impact Resistance (Coefficient of restitution)

0.47

AS 4459.5

Modules of Rupture

Average 14.5MPa

AS 4459.4

Breaking Strength

/

/

Thickness≤18mm

Average≥2700N; Individual max.value≥2100N

ISO10545-4

18mm

Average≥5400N; Individual max.value≥4500N

ISO10545-4

Frost Resistance

No visible damages after 25 changes of freezing

and thawing

ISO10545-12

Resistance to Thermal Shock

Free from defects after 10 cycles

ISO10545-9/AS 4459.9

Thermal Conductivity

Thickness≤18mm

≤0.35w/(m . k)

ISO10545-8

18mm

≤0.47w/(m . k)

Moisture Expansion

0.007%

ISO10545-10

Wind Load

9Kpa

ASTM E330

Linear Thermal Expansion

5.46x10ˉ⁶Cˉ¹

ISO10545-8

Chemical Properties

Resistance to Low Concentrations of Acids

 and Alkalis

Not Lower than the requirements of ULB

ISO10545-13
