| *Model No.: | FG451876 |
|---|---|
| *Place Of Origin: | Fujian, China |
| *Material: | Natural Clay |
| *Size: | 450*1200*18mm |
| *Color: | Brown |
| *Packaging Details: | Wooden Crate |
| *Payment Terms: | L/C, T/T, Western Union |
| *Port: | Xiamen |
| *Delivery Time: | 25 days after receiving deposit |
| *Certification: | CE, ISO9001:2006 |
Terracotta panel is produced from environmentally responsible clay-based construction materials and designed as a ventilated curtain wall and rainscreen solution. lOPO supports wall cladding panel up to 1,800 mm in length and 600 mm in width. A low weight per unit area of approximately 33 kilogram per square meter allows panels to mount to almost any façade with just a few holes and dowels.

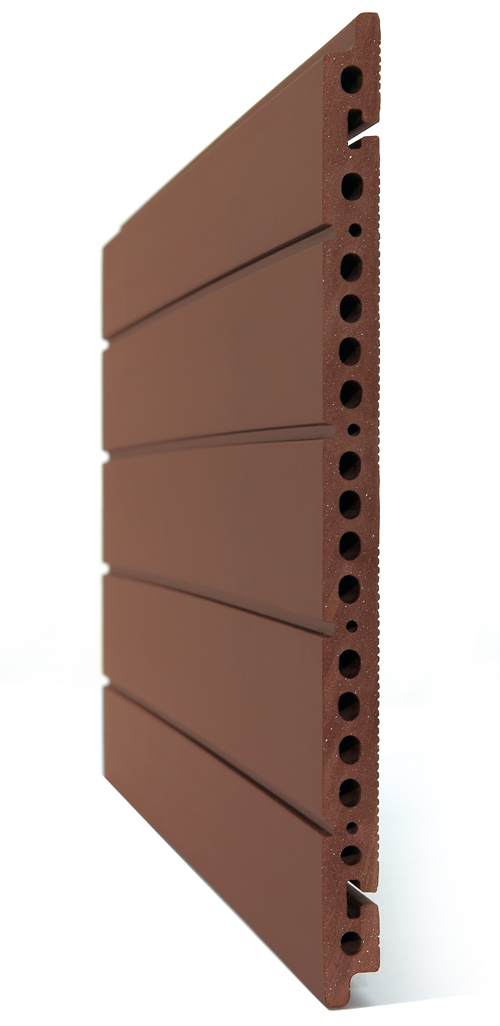

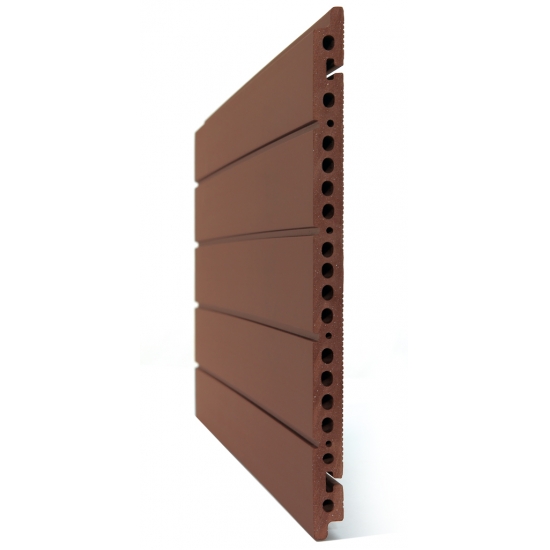

UNBREAKABLE TERRACOTTA WALL CLADDING WITH 450X1200X18MM SIZE
DESCRIPTION
LOPO Terracotta has imported molding machines of vacuum extrusion and domestic longest roller kiln (260-meter) with 428 firing units for exterior wall facade tile, 80,000 square meters open stockyard with the daily reserve of natural clay raw materials amounts to 300,000 tons, the semi-product indoor repository with storage capacity of 150,000 tons, the automatic production line with the processing capacity of shaping, cutting and polishing, a batch storage system which can reserve 12,000 tons of prepared clay material.
KEY BENEFITS
- Natural terracotta clay materials, eco-friendly
- wide range of sizes and colors available
- Hollow structure and light weight design
- No-static and no-radiation
- Never fade, strong, excellent long-term durability
- Convenient fixing system, safe and reliable
- Extreme UV and weather resistance
- Wind and earthquake resistance
- Anti-fire, anti-freeze, heat preservation and sound insulation- Self-cleaning, low maintenance
TERRACOTTA WALL CLADDING COLOR RANGE
SIZES AND AVAILABILITY
| Regular Product | Color: White/Yellow/Grey/red/Brown Surface Treatment: Flat/Grooved/Sanded/Glazed/Strip-line/Wood Grain/Corrugated |
| Dry Hanging Terracotta Panel | Length: 250-1500mm Width: 150-600mm Thickness: 18mm or 30mm |
| Small Size Terracotta Panel | Width: 100-200mm Thickness: 10-15mm |
| Light Weight Terracotta Panel | Length: 250-1500mm Width: 150-600mm Thickness: 10-15mm |
| Note: | Customized is welcome! Just send us your design or sample. |
APPLICATION:
Municipal Building / Theaters / Education Building /Commercial Building/ Hospital/ Hotel / Airport / Subway/ Residential Area / Renovation of Antique Building etc.
LOPO CURTAIN WALL PANEL TEST REPORT:
CHARACTERISTIC |
LOPO Specification |
Reference Standard |
Dimensions and Surface Quality |
||
Length |
±1%/max.(L:±1mm; W:±1.5mm) |
ISO10545-2 |
Thickness |
±10%/max.±1.0mm |
|
Straightness of Sides |
±0.5%/max.(L:±2mm; W:±0.5mm) |
|
Rectangularity |
±0.5%/max.±2mm |
|
Surface Flatness(curvature and warpage) |
±1%/max.±2.5mm |
|
Centre |
±1%/max.±2.5mm |
|
Side |
±1%/max.±2.5mm |
|
Warpage |
/ |
|
Surface Quality |
||
Crack |
0 |
ISO10545-2 |
Scratch |
No obvious flaw is visually inspected from a distance of 1.5metres while the tile is hanging vertically. |
|
Color Difference |
No obvious flaw is visually inspected from a distance of 1.5metres while the tile is hanging vertically. |
|
Stains |
No obvious flaw is visually inspected from a distance of 1.5metres while the tile is hanging vertically. Number permitted≤3 |
|
Striation |
No obvious flaw is visually inspected from a distance of 1.5metres while the tile is laid flat |
|
Chipped Edge(Length/Width/Thickness) |
Front: max.(w≤1mm, T≤1mm, L≤3mm); Back: max.(w≤2mm, T≤1mm, L≤5mm); |
|
Chipped Corner(Length/Thickness) |
Front: max.(T≤2mm, L≤2mm); Back: max.(T≤2mm, L≤4mm); |
|
Physical Properties |
||
Water Absorption |
Average: E≤6%; Individual max. Value: E≤6% |
ISO10545-3/AS 4459.3 |
Density |
2.3--2.4g/cm³ |
ISO10545-3/AS 4459.3 |
Dry Weight |
31kg/m2(T18mm) |
|
Compressive Strength |
Average 81.4MPa and 11.8psi(Vertical Coring) |
ASTM C126-3 |
Impact Resistance (Coefficient of restitution) |
0.47 |
AS 4459.5 |
Modules of Rupture |
Average 14.5MPa |
AS 4459.4 |
Breaking Strength |
/ |
/ |
Thickness≤18mm |
Average≥2700N; Individual max.value≥2100N |
ISO10545-4 |
18mm |
Average≥5400N; Individual max.value≥4500N |
ISO10545-4 |
Frost Resistance |
No visible damages after 25 changes of freezing and thawing |
ISO10545-12 |
Resistance to Thermal Shock |
Free from defects after 10 cycles |
ISO10545-9/AS 4459.9 |
Thermal Conductivity |
||
Thickness≤18mm |
≤0.35w/(m . k) |
ISO10545-8 |
18mm |
≤0.47w/(m . k) |
|
Moisture Expansion |
0.007% |
ISO10545-10 |
Wind Load |
9Kpa |
ASTM E330 |
Linear Thermal Expansion |
5.46x10ˉ⁶Cˉ¹ |
ISO10545-8 |
Chemical Properties |
||
Resistance to Low Concentrations of Acids and Alkalis |
Not Lower than the requirements of ULB |
ISO10545-13 |
